Sliding Window
Sliding windows, also called gliders, operate like double hung windows except the sashes move to the right and left instead of up and down. Sliding windows could have one or multiple operating sashes or be combined with picture windows. The operating sashes on sliding windows can either tilt in, swing in, or be removed for easy cleaning of both sides of the glass.
Color Selection
Technical Specifications
Item | Specification |
|---|---|
| Product Type | Aluminum Sliding Windows |
| Aluminum Thickness | 1.4mm – 3.0mm |
| Track System | Double Track / Triple Track / Custom Multi-Track |
| Glass Type | Tempered / Double Glazing / Laminated / Low-E / Triple Glazing |
| Thermal System | Thermal Break / Non-Thermal Available |
| Surface Finish | Powder Coating / PVDF / Anodized |
| Color Options | Eight standard colors + custom colors |
| Sealing System | Multi-Layer EPDM Sealing |
| Locking System | Hook Lock / Crescent Lock / Flush Lock / Handle Lock / Strip Lock |
| Custom Size | Available |
| Application | Villas / Apartments / Commercial Buildings / Residential |
DESIGN OPTIONS
Opening Type
2 Glass Panels
3 Glass Panels

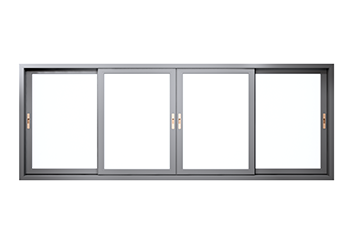

4 Glass Panels
Unequal Panel
Glass Selection
Low-e Glass
Ultra Clear Glass
Art Glass
Bulletproof Glass
Multi-layer Glass Options
Laminated Glass
Insulating Glass
Laminated Insulating Glass
Triple Insulating Glass
Aluminium Finishes
Anodizing
Powder Coating
Fluorocarbon Coating
3D Wood Grain Transfer

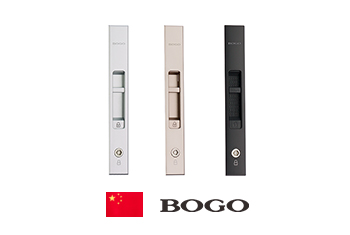

Hardware Selection
HOPO
MACO
What to Consider Before Buying Sliding Windows
Choosing a sliding window involves balancing appearance, ventilation, insulation, and long-term usability.
Aluminum Structure
Sliding windows commonly use 1.4mm–3.0mm aluminum profiles depending on system requirements. For larger openings, 1.8mm or 2.0mm profiles are commonly selected to provide better structural stability and durability.
Track and Panel Design
Sliding windows are commonly designed with double-track or triple-track systems depending on ventilation and opening needs. For larger or customized projects, systems can also be designed with 3+3 six-track configurations to achieve wider openings and more flexible panel arrangements.
Glass Selection
Glass selection directly affects indoor comfort and overall window performance. Common options include tempered glass, double glazing, laminated glass, and Low-E glass, depending on sound insulation and thermal insulation requirements.
Hardware Quality
Smooth operation depends heavily on roller and locking systems. Reliable brands such as ROTO, CMECH, HOPO, and Siegenia are commonly used in high-quality systems.
Surface Finish
Surface finish affects both appearance and weather resistance. For long-term outdoor durability, 10-year weather-resistant finishes are generally recommended.
Installation and Technical Support
Professional installation is recommended to ensure proper sealing and long-term performance. We provide technical drawings and installation guidance to support project execution.
Photo Gallery

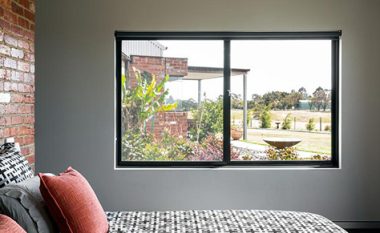

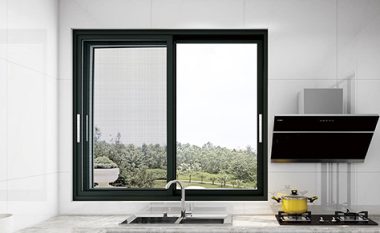

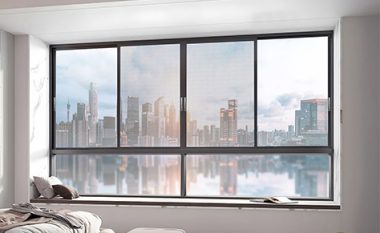

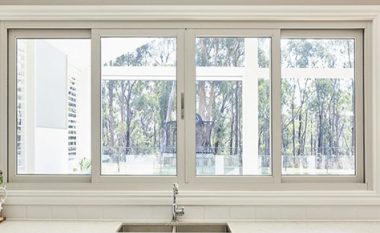

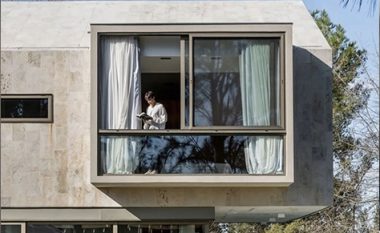

Real photo taken in the field
Planning a Sliding Window Project?
Every project has different ventilation, insulation, and design requirements.
From frame type and glass selection to custom sizing and opening configurations, our team can help recommend a suitable sliding window solution.
Fill out the form below and we’ll respond within 24 hours.
Sliding Windows — Frequently Asked Questions
Yes. Size, glass, frame finish, and configuration can be customized.
Triple-track systems provide greater ventilation flexibility and more opening combinations.
Yes. Mosquito screen options are available.
Yes. Slim frame systems are available for larger glass views and cleaner aesthetics.
Routine cleaning and track maintenance are recommended.
Yes. We provide drawings and installation guidance.
